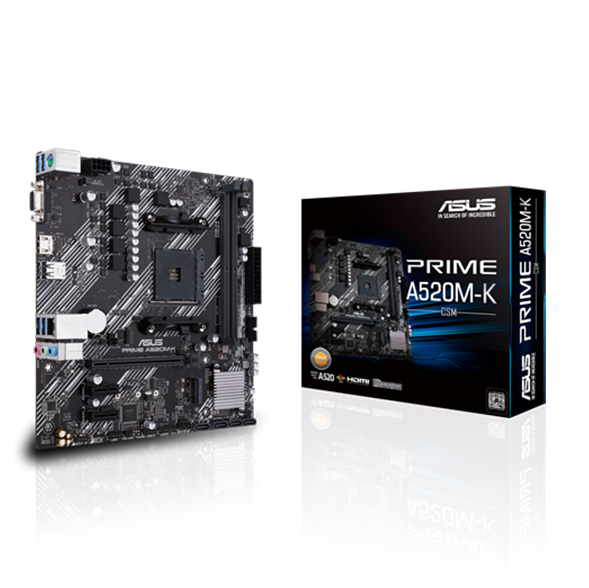

ASUS PRIME A520M-K/CSM Placa mATX AM4

ASUS PRIME A520M-K-CSM Placa mATX AM4

• Socket AMD AM4: Listo para procesadores de escritorio Ryzen™ 5000 Series / 4000 G-Series / 3000 Series.
• Enfriamiento completo: Disipador de Chipset y Fan Xpert.
• Conectividad ultrarrápida: Compatibilidad con M.2, Ethernet de 1 Gb, USB 3.2 Gen 2 tipo A.
• 5X Protection III: Múltiples protecciones de hardware para la protección integral del sistema.

Aspectos Fundamentales:

• ASUS PRIME A520M-K-CSM
• CPU AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors *
• Chipset AMD A520
• Memoria 2 x DIMM, Max. 64GB, DDR4 4866(O.C)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz
• Gráficos 1  x D-Sub 1  x HDMI 2.1(4K@60HZ)

• Slots de Expansión

• AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors 1 x PCIe 3.0 x16 (x16 mode)
  AMD A520 Chipset 2 x PCIe 3.0 x1
• Almacenamiento Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA
• AMD A520 Chipset : 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10
• LAN Realtek RTL8111H 1Gb Ethernet ASUS LANGuard
• Audio Realtek ALC887/897 7.1 Surround Sound High Definition Audio
• Audio Feature :
  – Audio Shielding
  – Dedicated audio PCB layers
• Puertos USB
• Rear USB Port( Total 6  )
  4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
  2 x USB 2.0 port(s)(2 x Type-A)
  Front USB Port ( Total 6  )
  2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
  4 x USB 2.0 port(s)(4 x Type-A)
• Puertos I/O Traseros
• 1 x PS/2 keyboard/mouse combo port(s)
  1 x D-Sub
  HDMI x 1
  1 x LAN (RJ45) port(s)
  4 x USB 3.2 Gen 1 (blue) Type-A
  2 x USB 2.0
  3 x Audio jack(s)

• Internal I/O

• 1 x CPU Fan connector(s)
  Chassis Fan connector(s) x 1
  1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
  1 x SPI TPM header
  4 x SATA 6Gb/s connector(s)
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  8-pin EATX 12V Power connectors x 1
  1 x Front panel audio connector(s) (AAFP)
  1 x Clear CMOS jumper(s)
  System panel connector x 1
  1 x COM port header
  1 x Speaker connector

• Accesorios

• User´s manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  1 x Supporting DVD
  1 x M.2 SSD screw package(s)
• BIOS
• 256 Mb Flash ROM, UEFI AMI BIOS
• Capacidad de gestión
• WOL by PME, PXE
• Sistema Operativo
• Windows® 10 64-bit
• Factor de forma
• mATX Form Factor
  9  inch x 8.7  inch ( 22.6  cm x 22.1  cm )
• Modelo PRIME A520M-K
• CPU AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors *

• Audio Feature :

  – Audio Shielding
  – Dedicated audio PCB layers

• Puertos USB
• Rear USB Port( Total 6  )
  4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
  2 x USB 2.0 port(s)(2 x Type-A)
  Front USB Port ( Total 6  )
  2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
  4 x USB 2.0 port(s)(4 x Type-A)
• Puertos I/O Traseros
• 1 x PS/2 keyboard/mouse combo port(s)
  1 x D-Sub
  HDMI x 1
  1 x LAN (RJ45) port(s)
  4 x USB 3.2 Gen 1 (blue) Type-A
  2 x USB 2.0
  3 x Audio jack(s)

• Internal I/O

• 1 x CPU Fan connector(s)
  Chassis Fan connector(s) x 1
  1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
  1 x SPI TPM header
  4 x SATA 6Gb/s connector(s)
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  8-pin EATX 12V Power connectors x 1
  1 x Front panel audio connector(s) (AAFP)
  1 x Clear CMOS jumper(s)
  System panel connector x 1
  1 x COM port header
  1 x Speaker connector
• Accessorios
• User´s manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  1 x Supporting DVD
  1 x M.2 SSD screw package(s)

• BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS
• Capacidad de gestión
• WOL by PME, PXE
• Sistema Operativo
• Windows® 10 64-bit
• Factor de forma
• mATX Form Factor
  9  inch x 8.7  inch ( 22.6  cm x 22.1  cm )
