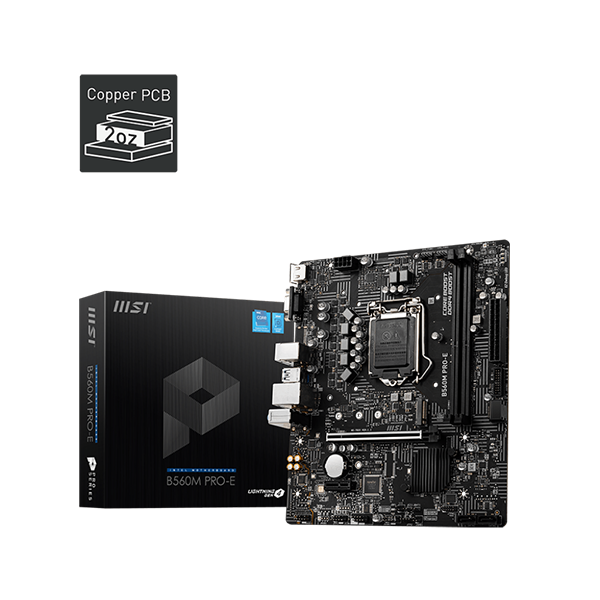

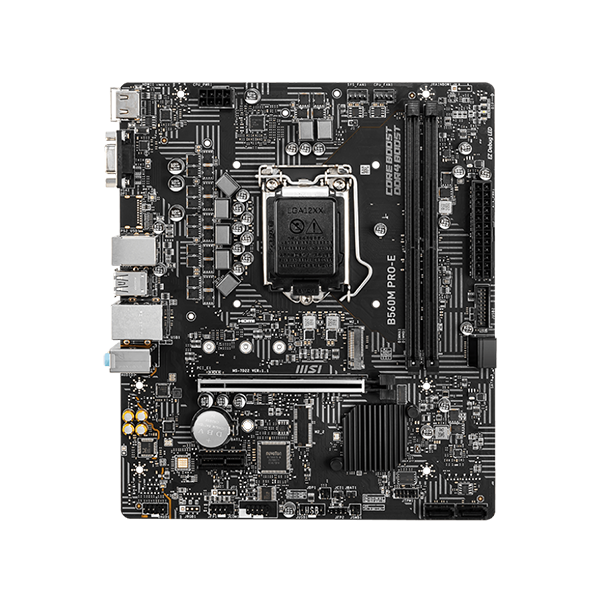

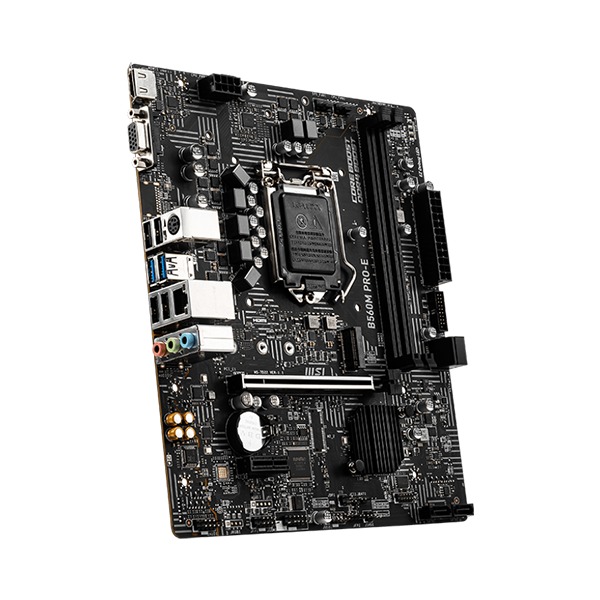

MSI B560M PRO-E DDR4 Micro ATX LGA 1200

CPU

Supports 10th Gen Intel^® Core^™ Processors, 11th Gen Intel^® Core ^™ Processors, Pentium^® Gold and Celeron^® Processors¹

Processor socket LGA1200

1. Please go to intel.com for compatibility information.

CHIPSET

Intel^® B560 chipset

MEMORY

• 2x DDR4 memory slots, support up to 64GB¹
• Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel^® CPU (by JEDEC & POR)
• Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel^® CPU (by JEDEC & POR)
• Max overclocking frequency:
  • 1DPC 1R Max speed up to 4800 MHz
  • 1DPC 2R Max speed up to 4600+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel^® Extreme Memory Profile (XMP)

1. Please refer to www.msi.com for more information on compatible memory

EXPANSION SLOT

• 1x PCIe x16 slot (From CPU)
  • Support up to PCIe 4.0 for 11th Gen Intel^® CPU
  • Support up to PCIe 3.0 for 10th Gen Intel^® CPU
• 1x PCIe 3.0 x1 slot (From PCH)

ONBOARD GRAPHICS

• 1x HDMI™ 2.0b with HDR port, supports a maximum resolution of 4K 60Hz¹²
• 1x VGA port, supports a maximum resolution of 2048×1536 60Hz, 1920×1200 60Hz¹

1. Available only on processors featuring integrated graphics.
2. Graphics specifications may vary depending on the CPU installed.

AUDIO

Realtek^® ALC897 Codec

• 7.1-Channel High Definition Audio

LAN

STORAGE

Intel^® B560 Chipset

• 4x SATA 6Gb/s ports (From B560 Chipset)
• 1x M.2 slot (Key M)
  • M2_1 slot (From B560 Chipset)¹
    • Supports up to PCIe 3.0 x4
    • Supports 2242/ 2260/ 2280 storage devices

1. SATA4 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

USB

Intel^® B560 Chipset

• 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)
• 6x USB 2.0 ports (4 Type-A ports on the back panel,2 ports available through the internal USB 2.0 connectors)

FORM FACTOR

• Miro-ATX Form Factor
• 9.29 in. x 7.95 in. (23.6 cm x 20.2 cm)

BIOS FEATURES

• 1x 256 Mb flash
• UEFI AMI BIOS
• ACPI 6.2, SMBIOS 3.0
• Multi-language

INTERNAL CONNECTORS

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 4x SATA 6Gb/s connectors
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin system fan connector
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Serial port connector
• 1x Chassis Intrusion connector
• 1x Clear CMOS jumper
• 1x TPM module connector

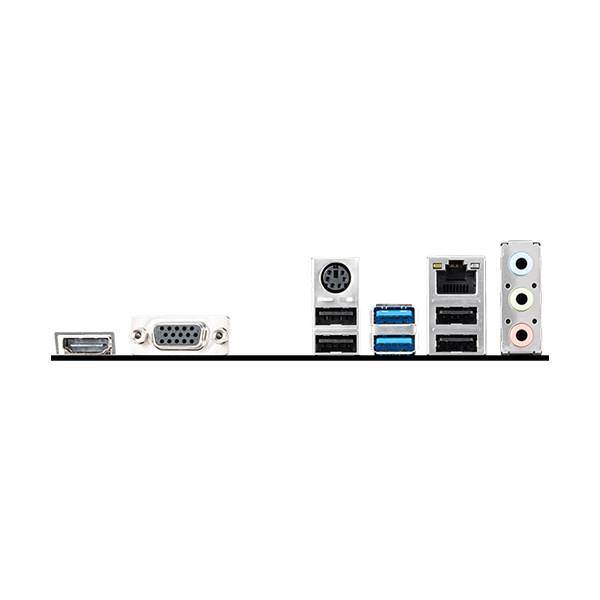

BACK PANEL CONNECTORS

BOX CONTENT
