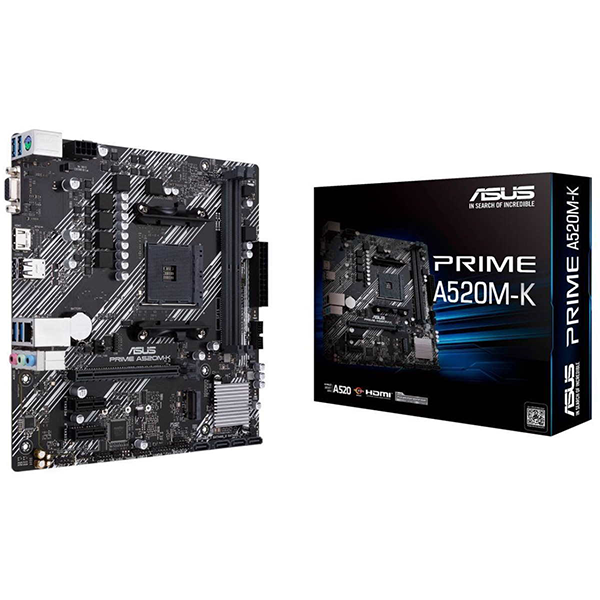

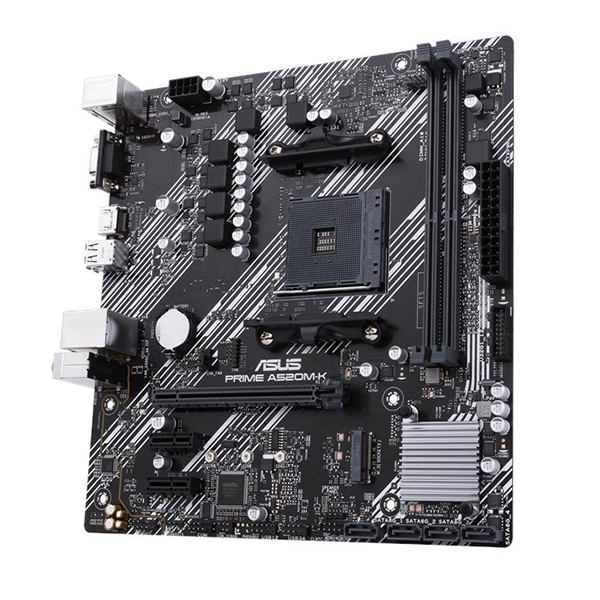

ASUS PRIME A520M-K M.2 Ryzen AM4 Placa Madre Micro ATX
Tarjeta Madre micro ATX AMD A520 (Ryzen AM4) con soporte M.2, Ethernet de 1 Gb, HDMI / D-Sub, SATA 6 Gbps, USB 3.2 Gen 1 Tipo A
Socket AMD AM4 Listo para AMD Ryzen™ de tercera generación con procesadores gráficos Radeon™.
Refrigeración completa: Disipador de Chipset y Fan Xpert.
Conectividad ultrarrápida: Compatibilidad con M.2, Ethernet de 1 Gb, USB 3.2 Gen 2 tipo A.
5X Protection III: Múltiples protecciones de hardware para la protección integral del sistema.
ASUS La serie ASUS Prime está diseñada por expertos para liberar todo el potencial de la plataforma AMD Ryzen de tercera generación. Con un diseño de energía robusto, soluciones de enfriamiento integrales y opciones de ajuste inteligentes, las tarjetas madre de la serie Prime A520 brindan a los usuarios diarios y a los constructores de PC una gama de opciones de ajuste de rendimiento a través de funciones de software y firmware intuitivas.
ASUS PRIME A520M-K M.2 Ryzen AM4 Placa Madre Micro ATX
CPU
Build in AMD AM4 Socket Processors *
* Refer to www.asus.com for CPU support list
Chipset
AMD A520
Memoria
2 x DIMM, Max. 64GB, DDR4 4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor.
Gráficos
1 x D-Sub
1 x HDMI 2.1(4K@60HZ)
Slots de Expansión
3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
1 x PCIe 3.0 x16 (x16 mode) AMD A520 Chipset
2 x PCIe 3.0 x1
Almacenamiento
Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support AMD A520 Chipset :
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
LAN
Realtek RTL8111H 1Gb Ethernet
ASUS LANGuard
Audio
Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC *
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature :
– Audio Shielding
– Dedicated audio PCB layers
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
Puertos USB
Rear USB Port ( Total 6 )
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
4 x USB 2.0 port(s)(4 x Type-A)
Software Features
ASUS Exclusive Software
Armoury Crate
AI Suite 3
– Performance and Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert
– EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
– CrashFree BIOS 3
– ASUS EZ Flash 3
– UEFI BIOS EZ Mode
ASUS Special Features
-5X PROTECTION III
– ASUS DIGI+ VRM
– ASUS LANGuard
– Overvoltage Protection
– ASUS SafeSlot Core
– ASUS Stainless-Steel Back I/O
Q-Design
– ASUS Q-DIMM
– Q-Slot
ASUS Thermal Solution
– Aluminum heatsink design

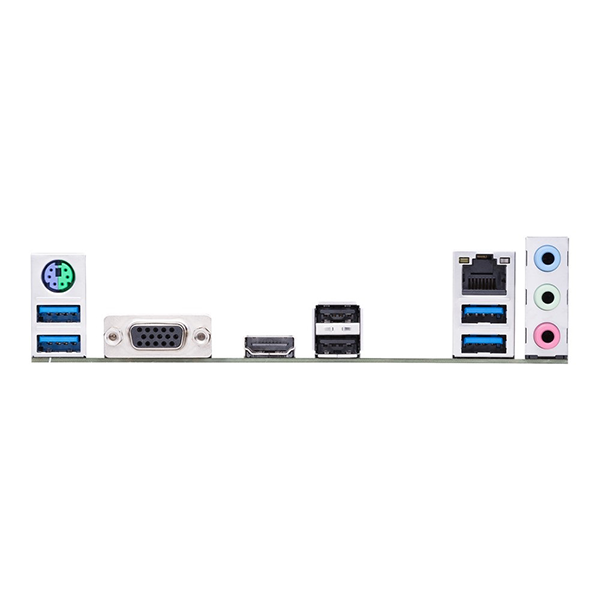

Puertos I/O Traseros
1 x PS/2 keyboard/mouse combo port(s)
D-Sub x 1
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.2 Gen 1 (blue) Type-A
2 x USB 2.0
3 x Audio jack(s)
Internal I/O
1 x CPU Fan connector(s)
Chassis Fan connector(s) x 1
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x SPI TPM header
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
24-pin EATX Power connector(s) x 1
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
Clear CMOS jumper(s) x 1
1 x System panel connector
COM port header x 1
1 x Speaker connector
Accessorios
User’s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x M.2 SSD screw package(s)
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Capacidad de gestión
WOL by PME, PXE
Sistema Operativo
Windows® 10 64-bit
Factor de forma
mATX Form Factor
8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )
Corsair, CyberLink, OFERTA, Componentes RGB, Componentes, Gabinetes, Gabinetes/Gamer
SKU: CC-9011211-WW
