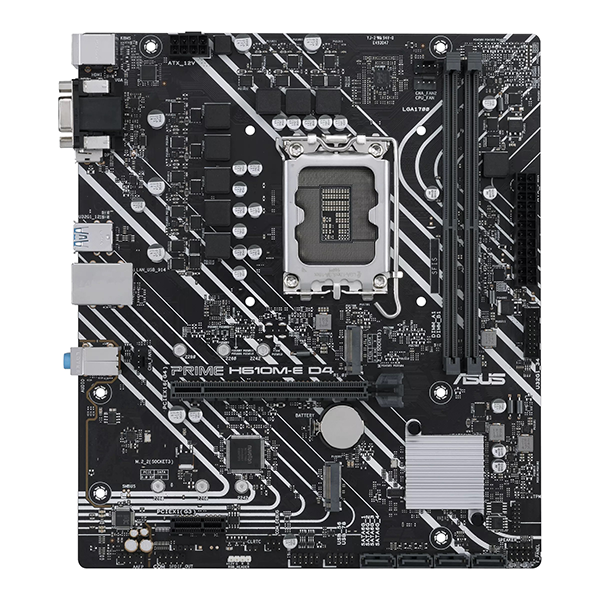

ASUS PRIME H610M-E D4 Placa Madre Micro ATX LGA1700
$105.980
Transferencia o Depósito.
$110.220
Otros Medios de Pago.
Marca: ASUS
MPN: PRIMEH610M-ED4
Venta Online
Medios de Pago
Disponibilidad:
Sin existencias
$105.980 $124.990 IVA Incluido
Sin existencias
ASUS PRIME H610M-E D4 Placa Madre Micro ATX LGA1700
- Socket Intel® LGA 1700: Listo para procesadores Intel® de 12a y 13a generación.
- Refrigeración completa: Disipador de calor PCH y Fan Xpert 2+.
- Conectividad ultrarrápida: Puerto M.2 de 32Gbps, Realtek 1Gb Ethernet y USB 3.2 Gen 1.
- 5X Protection III: Múltiples protecciones de hardware para una protección completa.
Aspectos Fundamentales:
- CPU
- Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
- 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
- Dual Channel Memory Architecture
- Supports Intel® Extreme Memory Profile (XMP)
- 1 x DisplayPort**
- 1 x D-Sub port
- 1 x HDMI® port***
- Intel® 13th & 12th Gen Processors
- 1 x PCIe 4.0 x16 slot
- Intel® H610 Chipset
- 1 x PCIe 3.0 x1 slot
- Storage
- Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
- Intel® H610 Chipset
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
- 4 x SATA 6Gb/s ports
- Ethernet
- 1 x Realtek 1Gb Ethernet
-
USB
- Rear USB (Total 4 ports)
- 2 x USB 3.2 Gen 1 ports (2 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- Front USB (Total 6 ports)
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
-
Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC*
- – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- – Supports up to 24-Bit/192 kHz playback
- Audio Features
- – Audio Shielding
- – Premium audio capacitors
- – Dedicated audio PCB layers
- 2 x USB 3.2 Gen 1 ports (2 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- 1 x DisplayPort
- 1 x D-Sub port
- 1 x HDMI® port
- 1 x Realtek 1Gb Ethernet port
- 3 x Audio jacks
- 1 x PS/2 Keyboard (purple) port
- 1 x PS/2 Mouse (green) port
- Internal I/O Connectors
- Fan and Cooling related
- 1 x 4-pin CPU Fan header
- 2 x 4-pin Chassis Fan headers
- Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- Storage related
- 2 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
- Miscellaneous
- 1 x RGB header
- 1 x Clear CMOS header
- 1 x Front Panel Audio header (AAFP)
- 1 x COM Port header
- 1 x S/PDIF Out header
- 1 x Speaker header
- 1 x SPI TPM header (14-1pin)
- 1 x 10-1 pin System Panel header
- Operating System Windows® 11 64-bit, Windows® 10 64-bit
- Form Factor mATX Form Factor 9.6 inch x 8.3 inch ( 24.4 cm x 21.1 cm )
