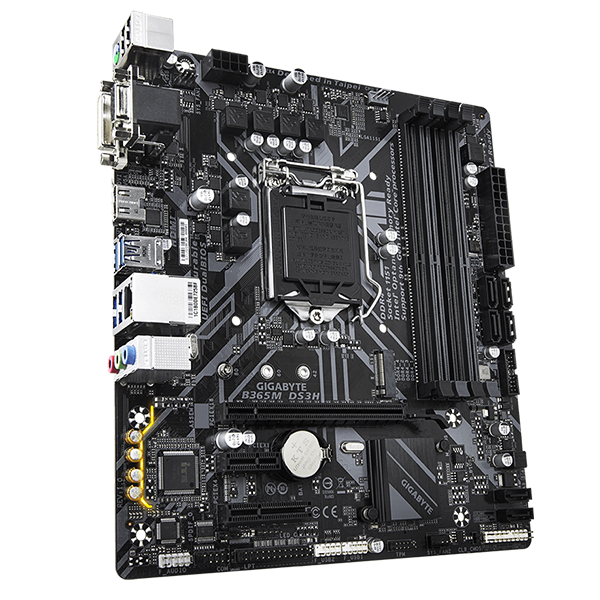

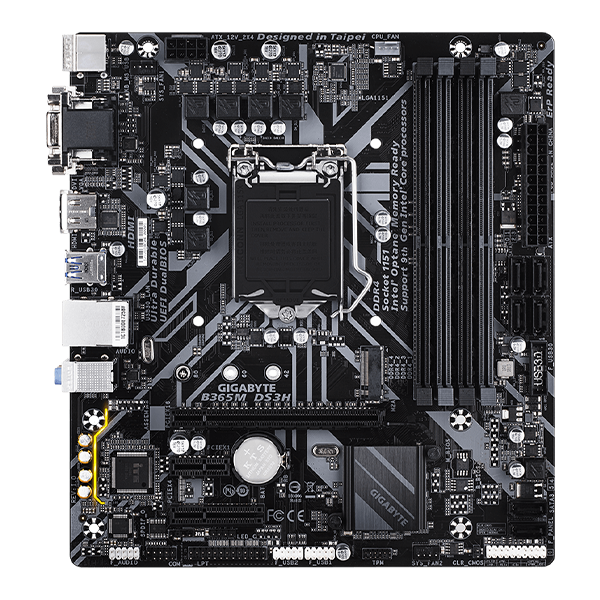

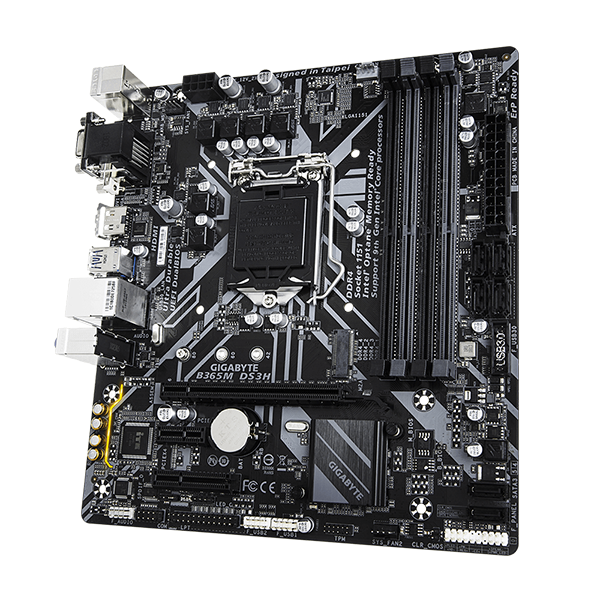

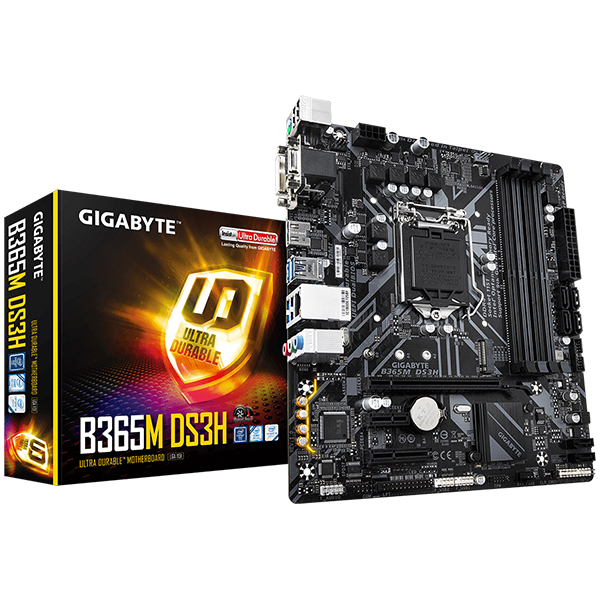

Gigabyte B365M DS3H M.2 Placa Madre LGA1151 8va 9na Gen

PROCESADORES COMPATIBLES ver aquí

Aspectos Fundamentales.

• Gigabyte B365M DS3H M.2 Placa Madre LGA1151 8va y 9na Gen

• Procesador

  1. Support for 9th and 8th Generation Intel^® Core™ i9 processors/Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/ Intel^® Core™ i3 processors/Intel^® Pentium^® processors/Intel^® Celeron^® processors in the LGA1151 package
  2. L3 cache varies with CPU

  (Please refer «CPU Support List» for more information.)

• Chipset
  1. Intel^® B365 Express Chipset

• Memoria

  1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
  2. Dual channel memory architecture
  3. Support for DDR4 2666/2400/2133 MHz memory modules
  4. for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
     * To support 2666 MHz or XMP memory, you must install a 9th and 8th Generation Intel^® Core™ i9/i7/i5 processor.

  (Please refer «Memory Support List» for more information.)

• Gráficos Integrados

  Integrated Graphics Processor-Intel^® HD Graphics support:

  1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
  2. 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
     * The DVI-D port does not support D-Sub connection by adapter.
  3. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
     * Support for HDMI 1.4 version and HDCP 2.2.

  Support for up to 3 displays at the same time
  Maximum shared memory of 1 GB
  Actual support may vary by CPU

• Audio

  1. Realtek^® ALC887 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
     * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
  4. Support for S/PDIF Out

• LAN

  1. Realtek^® GbE LAN chip (10/100/1000 Mbit)

• Puertos de Expansión

  1. 1 x PCI Express x16 slot, running at x16
     * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 1 x PCI Express x4 slot
  3. PCI Express x1 slot x 1
     (All of the PCI Express slots conform to PCI Express 3.0 standard.)

• Interfaz de Almacenamiento

  Chipset:

  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
  2. 6 x SATA 6Gb/s connectors
  3. Support for RAID 0, RAID 1, RAID 5, and RAID 10
     * Refer to «1-7 Internal Connectors,» for the installation notices for the M.2 and SATA connectors.

  Intel^® Optane™ Memory Ready

• USB

  Chipset:

  1. 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

• Conectores Internos de E/S

  1. 1 x 24-pin ATX main power connector
  2.  8-pin ATX 12V power connector x 1
  3. 1 x CPU fan header
  4. 2 x system fan headers
  5. 1 x RGB LED strip header
  6. 1 x M.2 Socket 3 connector
  7. 6 x SATA 6Gb/s connectors
  8. 1 x front panel header
  9.  front panel audio header x 1
  10. 1 x S/PDIF Out header
  11. 1 x USB 3.1 Gen 1 header
  12. 2 x USB 2.0/1.1 headers
  13. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
  14. serial port header x 1
  15. 1 x parallel port header
  16. 1 x Clear CMOS jumper

• Conectores del Panel Trasero

  1. 1 x PS/2 keyboard/mouse port
  2. D-Sub port x 1
  3. 1 x DVI-D port
  4. 1 x HDMI port
  5. 4 x USB 3.1 Gen 1 ports
  6. 2 x USB 2.0/1.1 ports
  7. 1 x RJ-45 port
  8. 3 x audio jacks
• Controlador de E/S
  1. iTE^® I/O Controller Chip
• Monitorización H/W
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
     * Whether the fan speed control function is supported will depend on the cooler you install.

• BIOS

  1. 2 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Características Únicas

  1. Support for APP Center
     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
     3D OSD
     @BIOS
     AutoGreen
     Cloud Station
     EasyTune
     Easy RAID
     Fast Boot
     Game Boost
     ON/OFF Charge
     Platform Power Management
     RGB Fusion
     Smart Backup
     Keyboard
     Smart TimeLock
     HUD
     Smart Survey
     System Information Viewer
     USB Blocker
  2. Support for Q-Flash
  3. Support for Xpress Install
• Software Incluido
  1. Norton^® Internet Security (OEM version)
• Sistema Operativo
  1. Support for Windows 10 64-bit
• Diseño
  1. Micro ATX Form Factor; 22.6cm x 20.5cm
